Dimensions of Intake and Exhaust Valves

With a measuring time of as little as 2 seconds per workpiece the Schneider Messtechnik VideoCAD system is ideal for measuring length and functional length, diameter, groove, radius and angle on intake and exhaust valves. The software can be pre-programmed for repeat measurements, allowing graphical and measurement reports to be produced automatically with a pass/fail result.

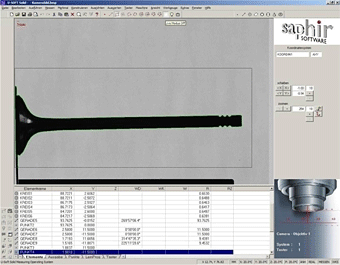

Dimensions of Intake and Exhaust Valves software

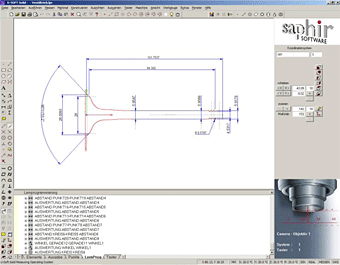

Dimensions of intake and exhaust valves using saphir software

Dimensions of Intake and Exhaust Valves software
